OPC UA Specification
OPC 10000-24
OPC Unified Architecture Part 24: Scheduler     Release 1.05.02 2022-11-01







The official PDF release of this document will contain a digital signature from the OPC Foundation in the following box:









CONTENTS



1       Scope. 1

2       Normative references 1

3       Terms, abbreviated terms and conventions 1

3.1         Overview. 1

3.2         Abbreviated terms 1

4       General information to Scheduler 2

5       Use cases. 2

5.1         UC01: Scheduling actions on specific times on each weekday 2

5.2         UC02: Scheduling actions on special dates 2

5.2.1           Overview. 2

5.2.2           UC002.1: Schedule actions at a specific date. 3

5.2.3           UC002.2: Schedule actions at an interval from a specific date to a specific date. 4

5.2.4           UC002.3 Schedule actions at a recurring interval 4

5.2.5           UC002.4 Schedule actions at specific dates defined globally. 4

6       Scheduler Information Model overview. 4

6.1         Overview. 4

6.2         Scheduling Times and Priorities 5

6.3         Start-up of Schedules 5

7       OPC UA ObjectTypes 6

7.1         CalendarType. 6

7.1.1           Overview. 6

7.1.2           ObjectType definition. 6

7.1.3           Method AddDateListElements 6

7.1.4           Method RemoveDateListElements. 7

7.2         ScheduleType definition. 8

7.2.1           Overview. 8

7.2.2           ObjectType definition. 8

7.2.3           Method AddExceptionScheduleElements 9

7.2.4           Method RemoveExceptionScheduleElements. 10

8       OPC UA DataTypes 10

8.1         SpecialEventType. 10

8.2         SpecialEventPeriodType 11

8.3         CalendarEntryType. 11

8.4         DateType. 12

8.5         Month. 13

8.6         DayOfMonth. 13

8.7         DayOfWeek. 15

8.8         DateRangeType. 15

8.9         TimeActionsType. 16

8.10      BaseActionType. 16

8.11      WriteLocalVariableActionType. 17

8.12      CallLocalMethodActionType. 17

8.13      TimeType. 18

8.14      DailyScheduleType. 18

9       Profiles and Conformance Units 19

9.1         Conformance Units 19

9.2         Profiles. 20

9.2.1           Profile list 20

9.2.2           Server Facets. 20

9.2.3           Client Facets. 21

10     Namespaces 21

10.1      Namespace Metadata. 21

10.2      Handling of OPC UA Namespaces 22

Annex A (normative)   Scheduler Namespace and Identifiers 23

A.1        Namespace and Identifiers for the Scheduler Information Model 23



Figures



Figure 1 – Overview Scheduler Information Model....................................................... 5


Tables



Table 1 – Example Weekly Schedule....................................................................... 2

Table 2 – Example Exception Schedule.................................................................... 3

Table 3 – Example Calendars................................................................................ 3

Table 4 – CalendarType Definition.......................................................................... 6

Table 5 – CalendarType Attribute values for child Nodes.............................................. 6

Table 6 – AddDateListElements Method Arguments..................................................... 7

Table 7 – AddDateListElements Method AddressSpace definition................................... 7

Table 8 – RemoveDateListElements Method Arguments............................................... 7

Table 9 – RemoveDateListElements Method AddressSpace definition.............................. 8

Table 10 – ScheduleType definition......................................................................... 8

Table 11 – ScheduleType Attribute values for child Nodes............................................ 9

Table 12 – AddExceptionScheduleElements Method Arguments..................................... 9

Table 13 – AddExceptionScheduleElements Method AddressSpace definition.................. 10

Table 14 – RemoveExceptionScheduleElements Method Arguments.............................. 10

Table 15 – RemoveExceptionScheduleElements Method AddressSpace definition............. 10

Table 16 – SpecialEventType Structure.................................................................. 11

Table 17 – SpecialEventType Definition.................................................................. 11

Table 18 – SpecialEventPeriodType Union.............................................................. 11

Table 19 – SpecialEventPeriodType definition.......................................................... 11

Table 20 – CalendarEntryType Union..................................................................... 12

Table 21 – CalendarEntryType Definition................................................................. 12

Table 22 – DateType Structure............................................................................. 12

Table 23 – DateType Definition............................................................................. 12

Table 24 – Month Values..................................................................................... 13

Table 25 – Month Definition................................................................................. 13

Table 26 – DayOfMonth Values............................................................................. 14

Table 27 – DayOfMonth Definition......................................................................... 14

Table 28 – DayOfWeek Values............................................................................. 15

Table 29 – DayOfWeek Definition.......................................................................... 15

Table 30 – DateRangeType Structure..................................................................... 15

Table 31 – DateRangeType Definition..................................................................... 16

Table 32 – TimeActionsType Structure................................................................... 16

Table 33 – TimeActionsType Definition................................................................... 16

Table 34 – BaseActionType Structure..................................................................... 17

Table 35 – BaseActionType Definition.................................................................... 17

Table 36 – WriteLocalVariableActionType Structure................................................... 17

Table 37 – WriteLocalVariableActionType Definition................................................... 17

Table 38 – CallLocalMethodActionType Structure...................................................... 18

Table 39 – CallLocalMethodActionType Definition..................................................... 18

Table 40 – TimeType Structure............................................................................. 18

Table 41 – TimeType Definition............................................................................. 18

Table 42 – DailyScheduleType Structure................................................................. 19

Table 43 – DailyScheduleType Definition................................................................. 19

Table 44 – Conformance Units for Scheduler............................................................ 19

Table 45 – Profile URIs for Scheduler..................................................................... 20

Table 46 - Scheduler Base Server Facet................................................................. 20

Table 47 – Scheduler Configuration Server Facet...................................................... 21

Table 48 – Scheduler Configuration Client Facet....................................................... 21

Table 49 – NamespaceMetadata Object for this Document.......................................... 22

Table 50 – Namespaces used in a Scheduler Server.................................................. 22

Table 51 – Namespaces used in this document......................................................... 22





OPC Foundation

____________



UNIFIED ARCHITECTURE

FOREWORD

This specification is the specification for developers of OPC UA applications. The specification is a result of an analysis and design process to develop a standard interface to facilitate the development of applications by multiple vendors that shall inter-operate seamlessly together.

Copyright © 2006-2022, OPC Foundation, Inc.

AGREEMENT OF USE

COPYRIGHT RESTRICTIONS

Any unauthorized use of this specification may violate copyright laws, trademark laws, and communications regulations and statutes. This document contains information which is protected by copyright. All Rights Reserved. No part of this work covered by copyright herein may be reproduced or used in any form or by any means--graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems--without permission of the copyright owner.

OPC Foundation members and non-members are prohibited from copying and redistributing this specification. All copies must be obtained on an individual basis, directly from the OPC Foundation Web site
http://www.opcfoundation.org.

PATENTS

The attention of adopters is directed to the possibility that compliance with or adoption of OPC specifications may require use of an invention covered by patent rights. OPC shall not be responsible for identifying patents for which a license may be required by any OPC specification, or for conducting legal inquiries into the legal validity or scope of those patents that are brought to its attention. OPC specifications are prospective and advisory only. Prospective users are responsible for protecting themselves against liability for infringement of patents.

WARRANTY AND LIABILITY DISCLAIMERS

WHILE THIS PUBLICATION IS BELIEVED TO BE ACCURATE, IT IS PROVIDED "AS IS" AND MAY CONTAIN ERRORS OR MISPRINTS. THE OPC FOUDATION MAKES NO WARRANTY OF ANY KIND, EXPRESSED OR IMPLIED, WITH REGARD TO THIS PUBLICATION, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF TITLE OR OWNERSHIP, IMPLIED WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR USE. IN NO EVENT SHALL THE OPC FOUNDATION BE LIABLE FOR ERRORS CONTAINED HEREIN OR FOR DIRECT, INDIRECT, INCIDENTAL, SPECIAL, CONSEQUENTIAL, RELIANCE OR COVER DAMAGES, INCLUDING LOSS OF PROFITS, REVENUE, DATA OR USE, INCURRED BY ANY USER OR ANY THIRD PARTY IN CONNECTION WITH THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

The entire risk as to the quality and performance of software developed using this specification is borne by you.

RESTRICTED RIGHTS LEGEND

This Specification is provided with Restricted Rights. Use, duplication or disclosure by the U.S. government is subject to restrictions as set forth in (a) this Agreement pursuant to DFARs 227.7202-3(a); (b) subparagraph (c)(1)(i) of the Rights in Technical Data and Computer Software clause at DFARs 252.227-7013; or (c) the Commercial Computer Software Restricted Rights clause at FAR 52.227-19 subdivision (c)(1) and (2), as applicable. Contractor / manufacturer are the OPC Foundation, 16101 N. 82nd Street, Suite 3B, Scottsdale, AZ, 85260-1830

COMPLIANCE

The OPC Foundation shall at all times be the sole entity that may authorize developers, suppliers and sellers of hardware and software to use certification marks, trademarks or other special designations to indicate compliance with these materials. Products developed using this specification may claim compliance or conformance with this specification if and only if the software satisfactorily meets the certification requirements set by the OPC Foundation. Products that do not meet these requirements may claim only that the product was based on this specification and must not claim compliance or conformance with this specification.

Trademarks

Most computer and software brand names have trademarks or registered trademarks. The individual trademarks have not been listed here.

GENERAL PROVISIONS

Should any provision of this Agreement be held to be void, invalid, unenforceable or illegal by a court, the validity and enforceability of the other provisions shall not be affected thereby.

This Agreement shall be governed by and construed under the laws of the State of Minnesota, excluding its choice or law rules.

This Agreement embodies the entire understanding between the parties with respect to, and supersedes any prior understanding or agreement (oral or written) relating to, this specification.

ISSUE REPORTING

The OPC Foundation strives to maintain the highest quality standards for its published specifications; hence they undergo constant review and refinement. Readers are encouraged to report any issues and view any existing errata here: HTUhttp://www.opcfoundation.org/errataUTH

1     Scope

This document specifies an OPC UA information model to expose information, at what dates and times specific actions are executed by the OPC UA Server. Those schedules can optionally also be manipulated via the information model.

The schedule defines on which dates they are active, and can also reference global calendars representing specific dates, for example public holidays. In addition, the schedule defines times and actions that should be executed at that time. The model defines writing Variables and calling Methods, but can be extended to other actions as well.

2     Normative references

The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments and errata) applies.

OPC 10000-1, OPC Unified Architecture - Part 1: Overview and Concepts

http://www.opcfoundation.org/UA/Part1/

OPC 10000-3, OPC Unified Architecture - Part 3: Address Space Model

http://www.opcfoundation.org/UA/Part3/

OPC 10000-4, OPC Unified Architecture - Part 4: Services

http://www.opcfoundation.org/UA/Part4/

OPC 10000-5, OPC Unified Architecture - Part 5: Information Model

http://www.opcfoundation.org/UA/Part5/

OPC 10000-6, OPC Unified Architecture - Part 6: Mappings

http://www.opcfoundation.org/UA/Part6/

OPC 10000-7, OPC Unified Architecture - Part 7: Profiles

http://www.opcfoundation.org/UA/Part7/

3     Terms, abbreviated terms and conventions

3.1      Overview

It is assumed that basic concepts of OPC UA information modelling are understood in this document. This document will use these concepts to describe the Scheduler Information Model. For the purposes of this document, the terms and definitions given in OPC 10000-1, OPC 10000-3, OPC 10000-4, OPC 10000-5, OPC 10000-7 as well as the following apply.

Note that OPC UA terms and terms defined in this document are italicized in the document.

3.2      Abbreviated terms



HTTP           Hypertext Transfer Protocol

PMS            Production Management System

URI             Uniform Resource Identifier

XML            Extensible Markup Language

4     General information to Scheduler

Schedulers allow to define per day of the week specific times at which specific actions are executed in the OPC UA Server.

In addition, schedulers can define special dates and times at which specific actions are executed in the OPC UA Server. If such a date occurs, the actions of the special date are executed, and the weekly schedule is ignored.

A scheduler can define the special dates by either

-     defining a concrete date (e.g. 2022-01-17),

-     defining a range of dates (e.g. 2022-01-17 until 2022-04-13)

-     defining repeating dates with wildcards (e.g. every 1^st January)

-     or referencing global calendars containing for example all public holidays of a year

Per date an array of times and corresponding actions including parameterization is defined, when the action is executed. Actions can be the writing of Variables or calling Methods, but can also be extended to other actions.

5     Use cases

5.1      UC01: Scheduling actions on specific times on each weekday

The user wants to schedule that at specific times on each individual weekday a specific action is executed, for example the heating is set to a specific setpoint. In Table 1, an example of such a schedule is given. It contains the schedule for the heating of a school building, that is not used over the weekend. It may be needed to disable the schedule, e.g. when it is warm outside during summer.

Table 1 – Example Weekly Schedule

Monday	Tuesday	Wednesday	Thursday	Friday	Saturday	Sunday
00:00 Night	07:00 On	07:00 On	07:00 On	07:00 On	00:00 Off	00:00 Off
07:00 On	16:30 Night	16:30 Night	16:30 Night	16:30 Off
16:30 Night



5.2      UC02: Scheduling actions on special dates

5.2.1       Overview

The user wants to schedule that on special dates or date periods a specific action is executed, for example switching off the heating during public holidays. The user wants to be able to define those dates individual or reference predefined dates that can be used in several schedules. In Table 2, an example is given.

Table 2 – Example Exception Schedule

Date				Time	Value	Priority
Day	Interval	Recurring	Reference
		Every Saturday of March 2022		05:00	On	11 (School board)
				12:00	Off
	2022-04-03 – 2022-04-07			05:00	On	12 (IT user)
				16:30	Off
2022-04-01				05:00	On	13 (facility manager)
			CAL1 Variable Holidays	00:00	Off	14
			CAL2 Set Holidays	00:00	Off	15
			CAL3 School Vacation	00:00	Off	16



The referenced calendars are defined in Table 3.

Table 3 – Example Calendars

Day	Interval	Recurring	Note
CAL1: Variable Holidays
2022-04-18			Easter Monday
2022-05-26			Ascension Day
CAL2: Set Holidays
		Jan 01.	New Year’s
		Jan 06.	Epiphany
		Dec 24.	Christmas Eve
		Dec 25.	Christmas Day
		Dec 26.	Christmas Day
CAL3: School Vacation
	2022-02-21 – 2022-02-25
	2022-07-25 – 2022-09-02
	2022-12-23 – 2023-01-02



The example shows more detailed use cases, summarized in the following subsections.

5.2.2       UC002.1: Schedule actions at a specific date

As shown in Table 2 in the third entry, a special schedule on a specific date (2022-04-01) shall be applied.

5.2.3       UC002.2: Schedule actions at an interval from a specific date to a specific date

As shown in Table 2 in the second entry, a special schedule on a specific interval (2022-04-03 – 2022-04-07) shall be applied.

5.2.4       UC002.3 Schedule actions at a recurring interval

As shown in Table 2 in the first entry, a special schedule on a recurring interval (every Saturday per of March 2022) shall be applied.

5.2.5       UC002.4 Schedule actions at specific dates defined globally

As shown in Table 2 in the last three entries, a special schedule shall be applied on dates defined globally. The global definition shall support concrete dates (CAL1), recurring dates (CAL2) and concrete ranges (CAL3).

6     Scheduler Information Model overview

6.1      Overview

This specification defines two main ObjectTypes:

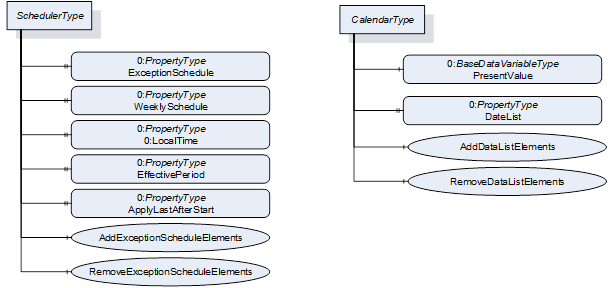

-     an instance of CalendarType represent a globally defined set of dates that can be referenced by schedule Objects;

-     an instance of ScheduleType represent a schedule, that defines for specific dates or weekdays specific times and actions, that shall be executed at those times.

An overview is given in Figure 1. Instances of ScheduleType can have a WeeklySchedule, defining per weekday specific times and per specific time a list of actions that shall be executed at that time. Optionally, the WeeklySchedule can be configured by OPC UA Clients.

In addition, or as alternative, a schedule Object can have a ExceptionSchedule. This defines special dates (days), either by defining a concrete date, a range of dates, or recurring dates, or by referencing instances of CalendarType. The optional Methods AddExceptionScheduleElements and RemoveExceptionScheduleElements can be used to configure the ExceptionSchedule by an OPC UA Client.

Figure 1 – Overview Scheduler Information Model

The CalendarType defines a DateList with specific dates. The optional AddDateListElements and RemoveDateListElements Methods can be used to manipulate the DateList Property by OPC UA Clients.

This specification does not define any specific entry points where to find schedule or calendar Objects. It is expected that they are placed reasonable in the AddressSpace, for example as child Object of an Object that is manipulated by actions of the schedule Object.

This specification does not define any specific mechanism how new schedule or calendar Objects are added or removed via OPC UA. Information Models using those Objects might define specific mechanisms like Methods or using the NodeManagement Service Set.

6.2      Scheduling Times and Priorities

A schedule Object can contain a WeeklySchedule with one entry per weekday and / or an ExceptionSchedule. One of both shall be defined. The WeeklySchedule contains for each day actions, that should be taken at specific times. The ExceptionSchedule contains specific dates or ranges of dates, and the corresponding actions that should be taken at specific times. For example, the ExceptionSchedule can contain an entry with all public holidays and another with plant holidays. Since the different entries of the ExceptionSchedule might overlap, each entry contains a priority. If overlapping entries exist, the one with the highest priority is used. If both, WeeklySchedule and ExceptionSchedule exist, the exception schedule has priority over the WeeklySchedule. That is, if the exception schedule has a matching date, the exception schedule is used, otherwise the weekly schedule.

6.3      Start-up of Schedules

When a Server restarts or starts the first time, and when a schedule Object becomes active (by reaching its EffectivePeriod, see 7.2.2) there are two options how a schedule Object shall react.

If the ApplyLastAfterStart Property is set to TRUE, the Server shall find the last set of actions to be executed before the current time and execute those actions. The mechanism to find the last set of actions is to find the last element in the list of TimeActionsType that occurs on or before the current time, and then use that element’s actions. If no such element is found, then no action is executed.

If the ApplyLastAfterStart Property is set to FALSE, the Server does not consider any previous actions and starts executing actions according to the defined schedule defined in the future.

7     OPC UA ObjectTypes

7.1      CalendarType

7.1.1       Overview

The CalendarType provides a list of calendar dates. Each entry in the list describes a specific date or date pattern, or range of dates. The CalendarType ObjectType is formally defined in Table 4.

7.1.2       ObjectType definition

Table 4 – CalendarType Definition



This PresentValue indicates the current value of the calendar: True if the current date is in the DateList and False if it is not. For the current date that local time of the OPC UA Server shall be considered.

The DateList is an array of elements of which each is either a specific date or date pattern, or range of dates.

The child Nodes of the CalendarType have additional Attribute values defined in Table 5.

Table 5 – CalendarType Attribute values for child Nodes

BrowsePath	Description Attribute
PresentValue	Indicates if the current date is in the DateList (true) or not (false)
DateList	Array of elements each defining either a specific date or date pattern, or range of dates
AddDateListElements	Adds elements to the DateList
RemoveDateListElements	Removes elements of the DateList



7.1.3       Method AddDateListElements

This Method adds entries to the DateList Property. Even if one entry cannot be added, the other entries are still processed and added, if possible. The signature of this Method is specified below. Table 6 and Table 7 specify the Arguments and AddressSpace representation, respectively.

Signature

AddDateListElements (

  [in]     CalendarEntryType[]       CalendarEntries

  [out]    0:Int32[]                EntryResults

  );

Table 6 – AddDateListElements Method Arguments



Method Result Codes (defined in Call Service)



Table 7 – AddDateListElements Method AddressSpace definition



7.1.4       Method RemoveDateListElements

This Method removes entries from the DateList Property. Even if one entry cannot be removed, the other entries are still processed and removed, if possible. The signature of this Method is specified below. Table 8 and Table 9 specify the Arguments and AddressSpace representation, respectively.

Signature

RemoveDateListElements (

  [in]     CalendarEntryType[]       CalendarEntries

  [out]    0:Int32[]                 EntryResults

  );

Table 8 – RemoveDateListElements Method Arguments



Method Result Codes (defined in Call Service)



Table 9 – RemoveDateListElements Method AddressSpace definition



7.2      ScheduleType definition

7.2.1       Overview

The ScheduleType defines a periodic schedule that can recur over a range of dates. The schedule may have optional exceptions at arbitrary times or dates. The basic unit of a schedule is days, which are divided into two types: normal days within a week and exception days. A priority mechanism defines which scheduled event is currently valid. The ScheduleType is formally defined in Table 10.

7.2.2       ObjectType definition

Table 10 – ScheduleType definition



The ExceptionSchedule provides an array of SpecialEventType. If present, each of those special events describes a sequence of schedule actions that take precedence over a normal day’s behaviour on a special day or days.

The WeeklySchedule provides an array of seven DailyScheduleType. Each entry represents one day of the week. The first entry in the array represents Monday, the last Sunday. Each element describes a sequence of times and a list of actions that provides a sequence of schedule actions on one day of the week when no ExceptionSchedule is in effect.

At least one of the two Properties ExceptionSchedule and WeeklySchedule shall be present.

To manipulate the ExceptionSchedule, the Methods AddExceptionScheduleElements and RemoveExceptionScheduleElements should be used. This simplifies adding and removing entries of the array. As the WeeklySchedule is a fixed-size array with a length of 7, there are no corresponding Methods. Instead, an individual entry of the array may be written by the Client to change only the schedule of one weekday.

The 0:LocalTime provides information about the local time of the schedule Object. All scheduled times are UTC time. Clients need to consider this Property to calculate the local time of the schedule. If this Property is changed, it is server-specific whether the times of the schedule are adjusted or not. If the Server and the Object the schedule is defined for are in the same local time, the Object may reference the 0:LocalTime Property of the 0:Server Object.

The EffectivePeriod specifies the range of dates within which the schedule Object is active. Upon entering its effective period, the object shall execute the defined actions at the defined times, otherwise it shall not execute any actions.

The ApplyLastAfterStart Property defines if the last set of actions shall be applied when starting the schedule Object (see 6.3 for details).

The child Nodes of the ScheduleType have additional Attribute values defined in Table 11.

Table 11 – ScheduleType Attribute values for child Nodes

BrowsePath	Description Attribute
ExceptionSchedule	An array of special events. If present, each of those special events describes a sequence of schedule actions that take precedence over a normal day’s behaviour on a special day or days.
AddExceptionScheduleElements	Adds elements to the ExceptionSchedule
RemoveExceptionScheduleElements	Removes elements from the ExceptionSchedule
WeeklySchedule	Each entry represents one day of the week. The first entry in the array represents Monday, the last Sunday. Each element describes a sequence of times and a list of actions that provides a sequence of schedule actions on one day of the week when no ExceptionSchedule is in effect.
0:LocalTime	Provides information about the local time of the schedule Object. All scheduled times are UTC time. Clients need to consider this Property to calculate the local time of the schedule. If this Property is changed, it is server-specific whether the times of the schedule are adjusted or not.
EffectivePeriod	Specifies the range of dates within which the schedule Object is active. Upon entering its effective period, the object shall execute the defined actions at the defined times, otherwise it shall not execute any actions.
ApplyLastAfterStart	The ApplyLastAfterStart Property defines if the last set of actions shall be applied when starting the schedule Object



7.2.3       Method AddExceptionScheduleElements

This Method adds entries to the ExceptionSchedule Property. Even if one entry cannot be added, the other entries are still processed and added, if possible. The signature of this Method is specified below. Table 12 and Table 13 specify the Arguments and AddressSpace representation, respectively.

Signature

AddExceptionScheduleElements (

  [in]     SpecialEventType[]        SpecialEvents

  [out]    0:Int32[]                 EntryResults

  );

Table 12 – AddExceptionScheduleElements Method Arguments



Method Result Codes (defined in Call Service)



Table 13 – AddExceptionScheduleElements Method AddressSpace definition



7.2.4       Method RemoveExceptionScheduleElements

This Method removes entries from the ExceptionSchedule Property. Even if one entry cannot be removed, the other entries are still processed and removed, if possible. The signature of this Method is specified below. Table 14 and Table 15 specify the Arguments and AddressSpace representation, respectively.

Signature

RemoveExceptionScheduleElements (

  [in]     SpecialEventType[]        SpecialEvents

  [out]    0:Int32[]                 EntryResults

  );

Table 14 – RemoveExceptionScheduleElements Method Arguments



Method Result Codes (defined in Call Service)



Table 15 – RemoveExceptionScheduleElements Method AddressSpace definition



8     OPC UA DataTypes

8.1      SpecialEventType

This structure contains a period, a list of time actions, and a priority. It is a means to identify moments in time over one or more days. How the priority is used is defined in section 6.2. The structure is defined in Table 16.

Table 16 – SpecialEventType Structure



Its representation in the AddressSpace is defined in Table 17.

Table 17 – SpecialEventType Definition





8.2      SpecialEventPeriodType

This union contains a calendar entry or a reference to a calendar Object. The union is defined in Table 18.

Table 18 – SpecialEventPeriodType Union



Its representation in the AddressSpace is defined in Table 19.

Table 19 – SpecialEventPeriodType definition



8.3      CalendarEntryType

This union that defines various calendar date values. The union is defined in Table 18.

Table 20 – CalendarEntryType Union



Its representation in the AddressSpace is defined in Table 19.

Table 21 – CalendarEntryType Definition



8.4      DateType

This structure defines a calendar date. It allows to define a concrete date, e.g. 2022-02-12. By using wildcards, it also allows to define repeating dates, like every Wednesday, every odd day of a month, every 24^th of December, every last day of a month in 2023, etc. Its composition is formally defined in Table 22.

Table 22 – DateType Structure



Its representation in the AddressSpace is defined in Table 23.

Table 23 – DateType Definition





8.5      Month

This enumeration indicates either a specific Gregorian calendar month, or a relative relationship (“odd”, “even”, and “unspecified”). The enumeration is defined in Table 24.

Table 24 – Month Values



Its representation in the AddressSpace is defined in Table 25.

Table 25 – Month Definition



8.6      DayOfMonth

This enumeration indicates specific days of the month by specific date (“1”, “22”, and so on) or by relative position (“last day of month”, “even day of month”, and so on). The enumeration is defined in Table 26.

Table 26 – DayOfMonth Values



Its representation in the AddressSpace is defined in Table 27.

Table 27 – DayOfMonth Definition



8.7      DayOfWeek

This enumeration indicates each of the seven days of the week, or “unspecified”. The enumeration is defined in Table 28.

Table 28 – DayOfWeek Values



Its representation in the AddressSpace is defined in Table 29.

Table 29 – DayOfWeek Definition





8.8      DateRangeType

This structure defines a time span, with start and end dates that are either open or absolute. The structure is defined in Table 30.

The StartDate and EndDate are limited to either use specific dates, i.e., wild cards like odd months are not allowed, or unspecified dates, i.e. only use wild cards.

In case a specific date is provided, the Year field shall not be 0; the Month field shall be a value between 1 to 12; the DayOfMonth field shall be between 1 to 31 and the DayOfWeek field shall be “unspecified”.

In case an unspecified date is provided, the Year field shall be 0, the Month field shall be “unspecified”, the DayOfMonth field shall be “unspecified”, and the DayOfWeek field shall be “unspecified”.

No other values shall be used for StartDate and EndDate.

Table 30 – DateRangeType Structure



Its representation in the AddressSpace is defined in Table 31.

Table 31 – DateRangeType Definition



8.9      TimeActionsType

This structure contains a time and an array of actions. It is used to define which actions shall be executed at a specific point in time. The structure is defined in Table 16.

Table 32 – TimeActionsType Structure



Its representation in the AddressSpace is defined in Table 17.

Table 33 – TimeActionsType Definition



8.10    BaseActionType

This abstract structure defines the base of an action. The base only contains information, if the last execution of the action was successful. The structure is defined in Table 34.

Table 34 – BaseActionType Structure



Its representation in the AddressSpace is defined in Table 35.

Table 35 – BaseActionType Definition



8.11    WriteLocalVariableActionType

This structure defines an action to write the value of a Variable managed in the same Server where the action is used. The structure is defined in Table 36.

Table 36 – WriteLocalVariableActionType Structure



Its representation in the AddressSpace is defined in Table 37.

Table 37 – WriteLocalVariableActionType Definition



8.12    CallLocalMethodActionType

This structure defines an action to call a Method of an Object managed in the same Server where the action is used. The structure is defined in Table 38.

Table 38 – CallLocalMethodActionType Structure



Its representation in the AddressSpace is defined in Table 39.

Table 39 – CallLocalMethodActionType Definition



8.13    TimeType

This structure that represents a point in time during a day. The structure is defined in Table 40.

Table 40 – TimeType Structure



Its representation in the AddressSpace is defined in Table 41.

Table 41 – TimeType Definition



8.14    DailyScheduleType

This structure defines a sequence of TimeActionsType structures. Each element in the sequence defines a time and a list of actions that shall be executed at that point in time. The structure is defined in Table 42.

Table 42 – DailyScheduleType Structure



Its representation in the AddressSpace is defined in Table 43.

Table 43 – DailyScheduleType Definition





9     Profiles and Conformance Units

Editor comment: This section will not be published in this document, but in the Profile database and OPC 10000-7 Profiles

9.1      Conformance Units

Table 44 defines the corresponding ConformanceUnits for the OPC UA Information Model for Scheduler.

Table 44 – Conformance Units for Scheduler

Category	Title	Description
Server	Scheduler Scheduling Base	Exposes the ObjectType ScheduleType, the DataTypes SpecialEventType, SpecialEventPeriodType, CalendarEntryType, DateType, Month, DayOfMonth, DayOfWeek, DateRangeType, TimeActionsType, BaseActionType, WriteLocalVariableActionType, CallLocalMethodActionType, TimeType and DailyScheduleType and all their supertypes in the AddressSpace. Supports a configuration with at least two instances of ScheduleType having at least 12 entries of DaySchedule in their WeeklySchedule (overall, not per day), and 6 entries in the ExceptionSchedule each having at least 6 entries of ListOfTimeActions.
Server	Scheduler Calendar Base	Exposes the ObjectType CalendarType, the DataTypes CalendarEntryType, DateType, Month, DayOfMonth, DayOfWeek, and DateRangeType and all their supertypes in the AddressSpace. Supports a configuration with at least three instances of CalendarType, each having at least 10 entries in DateList.
Server	Scheduler Scheduling Configuration	Supports at least on instance of ScheduleType supporting the Methods AddExceptionScheduleElements and RemoveExceptionScheduleElements to change the ExceptionSchedule Property and allowing writing the WeeklySchedule Property.
Server	Scheduler Calendar Configuration	Supports at least on instance of CalendarType supporting the Methods AddDateListElements and RemoveDateListElements to change the DateList Property.
Client	Scheduler Client Configuration	The client supports the configuration of instances of ScheduleType and CalendarType, by changing the configuration of existing Objects.



9.2      Profiles

9.2.1       Profile list

Table 45 lists all Profiles defined in this document and defines their URIs.

Table 45 – Profile URIs for Scheduler



9.2.2       Server Facets

9.2.2.1       Overview

The following sections specify the Facets available for Servers that implement the Scheduler companion specification. Each section defines and describes a Facet or Profile.





9.2.2.2       Scheduler Base Server Facet

Table 46 defines a Profile that describes the describes the base characteristics for all OPC UA Servers that support exposing schedules.

Table 46 - Scheduler Base Server Facet



9.2.2.3       Scheduler Configuration Server Facet

Table 47 defines a Facet that describes the base characteristics for all OPC UA Servers that support configuring schedules.

Table 47 – Scheduler Configuration Server Facet



9.2.3       Client Facets

9.2.3.1       Overview

The following tables specify the Facets available for Clients that implement the Scheduler companion specification.

9.2.3.2       Scheduler Configuration Client Facet

Table 48 defines a Facet that describes the base characteristics for all OPC UA Clients that support the configuration of schedules.

Table 48 – Scheduler Configuration Client Facet



10   Namespaces

10.1    Namespace Metadata

Table 49 defines the namespace metadata for this document. The Object is used to provide version information for the namespace and an indication about static Nodes. Static Nodes are identical for all Attributes in all Servers, including the Value Attribute. See OPC 10000-5 for more details.

The information is provided as Object of type NamespaceMetadataType. This Object is a component of the Namespaces Object that is part of the Server Object. The NamespaceMetadataType ObjectType and its Properties are defined in OPC 10000-5.

The version information is also provided as part of the ModelTableEntry in the UANodeSet XML file. The UANodeSet XML schema is defined in OPC 10000-6.

Table 49 – NamespaceMetadata Object for this Document



Note: The IsNamespaceSubset Property is set to False as the UaNodeSet XML file contains the complete Namespace. Servers only exposing a subset of the Namespace need to change the value to True.



10.2    Handling of OPC UA Namespaces

Namespaces are used by OPC UA to create unique identifiers across different naming authorities. The Attributes NodeId and BrowseName are identifiers. A Node in the UA AddressSpace is unambiguously identified using a NodeId. Unlike NodeIds, the BrowseName cannot be used to unambiguously identify a Node. Different Nodes may have the same BrowseName. They are used to build a browse path between two Nodes or to define a standard Property.

Servers may often choose to use the same namespace for the NodeId and the BrowseName. However, if they want to provide a standard Property, its BrowseName shall have the namespace of the standards body although the namespace of the NodeId reflects something else, for example the EngineeringUnits Property. All NodeIds of Nodes not defined in this document shall not use the standard namespaces.

Table 50 provides a list of namespaces typically used in a Scheduler OPC UA Server.

Table 50 – Namespaces used in a Scheduler Server

NamespaceURI	Description
http://opcfoundation.org/UA/	Namespace for NodeIds and BrowseNames defined in the OPC UA specification. This namespace shall have namespace index 0.
Local Server URI	Namespace for nodes defined in the local server. This namespace shall have namespace index 1.
http://opcfoundation.org/UA/Scheduler/	Namespace for NodeIds and BrowseNames defined in this document. The namespace index is Server specific.
Vendor specific types	A Server may provide vendor-specific types like types derived from ObjectTypes defined in this document in a vendor-specific namespace.
Vendor specific instances	A Server provides vendor-specific instances of the standard types or vendor-specific instances of vendor-specific types in a vendor-specific namespace. It is recommended to separate vendor specific types and vendor specific instances into two or more namespaces.



Table 51 provides a list of namespaces and their indices used for BrowseNames in this document. The default namespace of this document is not listed since all BrowseNames without prefix use this default namespace.

Table 51 – Namespaces used in this document

NamespaceURI	Namespace Index	Example
http://opcfoundation.org/UA/	0	0:EngineeringUnits



                                                                                Annex A
(normative)

Scheduler Namespace and Identifiers

A.1      Namespace and Identifiers for the Scheduler Information Model

This appendix defines the numeric identifiers for all of the numeric NodeIds defined in this document. The identifiers are specified in a CSV file with the following syntax:

<SymbolName>, <Identifier>, <NodeClass>

Where the SymbolName is either the BrowseName of a Type Node or the BrowsePath for an Instance Node that appears in the specification and the Identifier is the numeric value for the NodeId.

The BrowsePath for an Instance Node is constructed by appending the BrowseName of the instance Node to the BrowseName for the containing instance or type. An underscore character is used to separate each BrowseName in the path. Let’s take for example, the ScheduleType ObjectType Node which has the ExceptionSchedule Property. The Name for the ExceptionSchedule InstanceDeclaration within the ScheduleType declaration is: ScheduleType_ExceptionSchedule.

The NamespaceUri for all NodeIds defined here is http://opcfoundation.org/UA/Scheduler/

The CSV released with this version of the specification can be found here:

http://www.opcfoundation.org/UA/schemas/1.05/Opc.Ua.Scheduler.NodeIds.csv

NOTE    The latest CSV that is compatible with this version of the specification can be found here:

http://www.opcfoundation.org/UA/schemas/Opc.Ua.Scheduler.NodeIds.csv

A computer processible version of the complete Information Model defined in this document is also provided. It follows the XML Information Model schema syntax defined in OPC 10000-6.

The Information Model Schema for this version of the document (including any revisions, amendments or errata) can be found here:

http://www.opcfoundation.org/UA/schemas/1.05/Opc.Ua.Scheduler.NodeSet2.xml

NOTE    The latest Information Model schema that is compatible with this version of the document can be found here:

http://www.opcfoundation.org/UA/schemas/Opc.Ua.Scheduler.NodeSet2.xml

_____________
